Opis izdelka

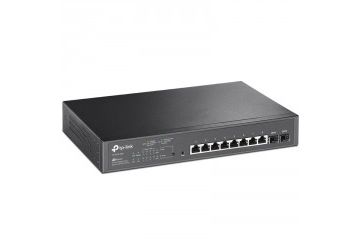

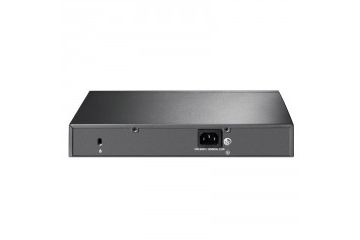

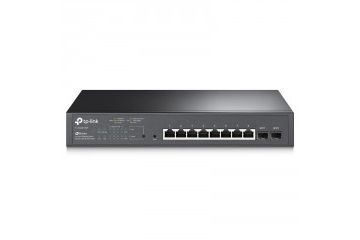

TL-SG2210MP JetStream 10-port Gigabit Smart stikalo z 8-port PoE+

150 W PoE proračun: 8x 802.3at/af-združljiva PoE+ vrata s skupno močjo 150 W*.
Popolni gigabitni vmesniki: 8x gigabit PoE+ vrata in 2x gigabit SFP reža zagotavljajo visoke hitrosti povezave.
Vgrajen v Omada SDN: Zero-Touch Provisioning (ZTP), centralizirano upravljanje v oblaku in inteligentno spremljanje.
Centralizirano upravljanje: dostop v oblaku in aplikacija Omada za izjemno udobje in enostavno upravljanje.
Robustne varnostne strategije: vezava vrat IP-MAC, ACL, zaščita vrat, DoS Defend, nadzor nad nevihto, DHCP Snooping, 802.1X, preverjanje pristnosti po radiju in drugo.
Optimizirajte glasovne in video aplikacije: L2/L3/L4 QoS in vohunjenje IGMP

Programsko definirano omrežje (SDN) z dostopom v oblaku

Omadina programsko definirana mreža (SDN) združuje omrežne naprave, vključno z dostopnimi točkami, stikali in prehodi, ki zagotavljajo 100% centralizirano upravljanje v oblaku. Omada ustvarja zelo razširljivo omrež je - vse je nadzorovano iz enega vmesnika. Na voljo so brezhibne brezžične in žične povezave, idealne za uporabo v gostinstvu, izobraževanju, trgovini na drobno, v pisarnah itd.

• Proizvajalčeva koda TL-SG2210MP
• EAN koda 6935364030674
• Proizvajalec TP-LINK
• Namestitev: rack
• Vrsta stikala: Smart
• Standard: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
• Vmesniki: 8× 10/100/1000 Mbps port RJ45, vsi podpirajo PoE+ (samodejno pogajanje/samodejno MDI/MDIX), 2x 100/1000 Mbps reže SFP
• Število POE portov: 8
• Brezžična hitrost: 10/100/1000Mbps
• PoE: 8x 802.3at/af PoE+
• Programske funkcije:

  Kakovost storitev:
  - 802.1p CoS/DSCP priority
  - 8 priority queues
  - Priority Schedule Mode
  - SP (Strict Priority)
  - WRR (Weighted Round Robin)
  - Queue Weight Config
  - Bandwidth Control
  - Port/Flow based Rating Limit
  - Smoother Performance
  - Storm Control
  - Multiple Control Modes(kbps/ratio)
  - Broadcast/Multicast/Unknown-Unicast Control

  L2 in L2+ Lastnosti:
  - DHCP Relay
  - DHCP VLAN Relay
  - DHCP L2 Relay
  - Link Aggregation
  - Static link aggregation
  - 802.3ad LACP
  - Up to 8 aggregation groups and up to 8 ports per group
  - Spanning Tree Protocol
  - 802.1D STP
  - 802.1w RSTP
  - 802.1s MSTP
  - STP Security: TC Protect, BPDU Filter/Protect, Root Protect
  - Loopback Detection
  - Flow Control
  - 802.3x Flow Control
  - Mirroring
  - Port Mirroring
  - CPU Mirroring
  - One-to-One
  - Many-to-One
  - Flow-Based
  - Ingress/Egress/Both
  - Device Link Detect Protocol (DLDP)
  - 802.1ab LLDP/ LLDP-MED

  L2 Multicast
  - IPv4, IPv6 shared multicast groups (511 groups max.)
  - IGMP Snooping
  - IGMP v1/v2/v3 Snooping
  - Fast Leave
  - IGMP Snooping Querier
  - Static Group Config
  - Multicast VLAN Registration (MVR)
  - Multicast Filtering
  - MLD Snooping
  - MLD v1/v2 Snooping
  - Fast Leave
  - MLD Snooping Querier
  - Static Group Config
  - Limited IP Multicast (256 profiles and 16 entries per profile)

  IPv6 Podpora
  - IPv6 Dual IPv4/IPv6
  - Multicast Listener Discovery (MLD) Snooping
  - IPv6 neighbor discovery (ND)
  - Path maximum transmission unit (MTU) discovery
  - Internet Control Message Protocol (ICMP) version 6
  - TCPv6/UDPv6
  - IPv6 applications
  - DHCPv6 Client
  - Ping6
  - Tracert6
  - Telnet (v6)
  - IPv6 SNMP
  - IPv6 SSH
  - IPv6 SSL
  - Http/Https
  - IPv6 TFTP

  VLAN
  - VLAN Group
  - Max. 4K VLAN Groups
  - 802.1Q tag VLAN
  - MAC VLAN
  - Protocol VLAN
  - GVRP
  - Voice VLAN

  Seznam za nadzor dostopa - 230 vnosov
  - Time-Range
  - Time Slice
  - Week Time-Range
  - Absolute Time-Range
  - Holiday
  - Time-based ACL
  - MAC ACL
  - Source MAC
  - Destination MAC
  - VLAN ID
  - User Priority
  - Ether Type
  - IP ACL
  - Source IP
  - Destination IP
  - IP Protocol
  - TCP Flag
  - TCP/UDP Source Port
  - TCP/UDP Destination Port
  - DSCP/IP TOS
  - IPv6 ACL
  - Combined ACL
  - Rule Operation
  - Permit/Deny
  - Policy Action
  - Mirror
  - Rate Limit
  - Redirect
  - QoS Remark
  - ACL Rules Binding
  - Port Binding
  - VLAN Binding
  - Actions for flows
  - Mirror (to supported interface)
  - Redirect (to supported interface)
  - Rate Limit
  - QoS Remark

  Varnost:
  - AAA
  - 802.1X
  - Port based authentication
  - MAC (Host) based authentication
  - Authentication Method includes PAP/EAP-MD5
  - MAB
  - Guest VLAN
  - Support Radius authentication and accountability
  - IP/IPv6-MAC Binding
  - 512 Binding Entries
  - DHCP Snooping
  - DHCPv6 Snooping
  - ARP Inspection
  - ND Detection
  - IP Source Guard
  - 253 Entries
  - Source IP+Source MAC
  - IPv6 Source Guard
  - 183 Entries
  - Source IPv6 Address+Source MAC
  - DoS Defend
  - Static/Dynamic/Permanent Port Security
  - Up to 64 MAC addresses per port
  - Broadcast/Multicast/Unicast Storm Control
  - kbps/ratio control mode
  - Port Isolation
  - Secure web management through HTTPS with SSLv3/TLS 1.2
  - Secure Command Line Interface (CLI)
  management with SSHv1/SSHv2
  - IP/Port/MAC based access control

  MIBs
  - MIB II (RFC1213)
  - Bridge MIB (RFC1493)
  - P/Q-Bridge MIB (RFC2674)
  - Radius Accounting Client MIB (RFC2620)
  - Radius Authentication Client MIB (RFC2618)
  - Remote Ping, Traceroute MIB (RFC2925)
  - Support TP-Link private MIBs
  - RMON MIB(RFC1757, rmon 1,2,3,9)

• Dimenzije: (SxVxG) 294 x 180 x 44 mm
• Garancija 24 mesecev
• Vsebina paketa: Stikalo, napajalni kabel, navodila, komplet za stojalo, gumijaste nogice
• Brezžična hitrost: No
• Porti: 8× 10/100/1000 Mbps port RJ45, vsi podpirajo PoE+ (samodejno pogajanje/samodejno MDI/MDIX), 2x 100/1000 Mbps reže SFP
• napajanje No
