Osnovne plošče

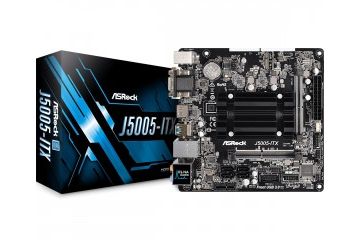

1005 s procesorjem ASRock J5005-ITX

Spletna cena z DDV

€ 133,14   € 126,48 -5,00%
oz. že od € 3,89/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preveri

Ni več v ponudbi

Koda izdelka: 90-MXB6D0-A0UAYZ


Opis izdelka

#90-MXB6D0-A0UAYZ / J5005-ITX



Unique Feature

ASRock Super Alloy

- Sapphire Black PCB

- High Density steklos Fabric PCB

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

CPU

- Intel® Quad-Core Pentium® Silver Processor J5005 (up to 2.8 GHz)

Memory

- Dual Channel DDR4 Memory Technology

- 2 x DDR4 SO-DIMM Slots*

- Supports DDR4 2400/2133 non-ECC, un-buffered memory

- Max. capacity of system memory: 8GB**



*2GB DRAM per module is not supported.



**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

- Supports Plug and Play

- ACPI 5.0 compliant wake up events

- Supports jumperfree

- SMBIOS 3.0 support

Graphics

- Integrated Intel® UHD Graphics 605: 18 EUs inside (Up to 800MHz)

- DX12, OpenGL 4.3, OGL ES 3.0, OpenCL 2.0

- HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit

- HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit

- Three graphics output options: D-Sub, DVI-D and HDMI

- Supports Triple Monitor

- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz

- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

- Supports HDCP with DVI-D and HDMI Ports

- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

- Premium Blu-ray Audio support

- Supports Surge Protection

- ELNA Audio Caps

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111H

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Slots

- 1 x PCI Express 2.0 x1 Slot

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)

Storage

- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

Connector

- 1 x COM Port Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x CPU Fan Connector (3-pin)

- 1 x Chassis Fan Connector (3-pin)

- 1 x 24 pin ATX Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)



*USB3_0_1 is shared with USB_0_1.

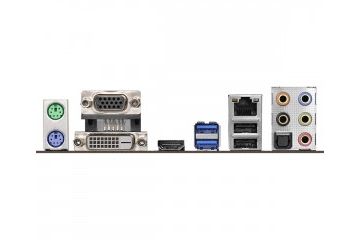

Rear Panel I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Software and UEFI

Software

- ASRock XFast LAN

UEFI

- ASRock Instant Flash

- ASRock Internet Flash



*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories

- Quick Installation Guide, Support CD, I/O Shield

- 2 x SATA Data Cables

- 1 x Screw for M.2 Socket

Hardware Monitor

- CPU/Chassis temperature sensing

- CPU/Chassis Fan Tachometer

- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)

- CPU/Chassis Fan multi-speed control

- CASE OPEN detection

- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

- Solid Capacitor design

OS

- Microsoft® Windows® 10 64-bit*



*Supports UEFI mode only

Certifications

- FCC, CE

- ErP/EuP ready (ErP/EuP ready power supply is required)
