ASUS PRIME Z270-A, DDR4, SATA3, USB-C, DP, M.2, LGA1151 ATX - PRIME Z270-A

Spletna cena z DDV

€ 146,50   € 136,25 -7,00%
oz. že od € 4,28/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Ne

Ni več v ponudbi

Koda izdelka: PRIME Z270-A


Opis izdelka

Šifra izdelka: PRIME Z270-A

PODNOŽJE: INTEL LGA 1151

ZA PROCESORJE: 7th/6th Generation Core™ i7/i5/i3/Pentium/Celeron

FORMAT: ATX Form Factor 30.5 x 24.4 cm

VEZNI ČIP: Intel Z270

POMNILNIK:

4 x DIMM DDR4 (3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133MHz) do skupno 64GB kapacitete, dual channel podpora

GRAFIKA: DA / preko CPU

RAID: DA (0,1,5,10)

RAZŠIRITVENE REŽE:

2 x PCIe 3.0/2.0 x16 (x16 mode)

1 x PCIe 3.0/2.0 x16 (x4 mode)

4 x PCIe 3.0/2.0 x1


MREŽNA KARTICA: Intel Gigabit LAN Controller(s)

ZVOČNA KARTICA: Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

NOTRANJI PRIKLJUČKI:

1 x Aura RGB Strip Header

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x CPU OPT Fan connector(s) (1 x 4 -pin)

2 x Chassis Fan connector(s) (2 x 4 -pin)

1 x Thunderbolt header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x EZ XMP switch

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)

1 x 5-pin EXT_FAN(Extension Fan) connector

1 x MemOK! button(s)

1 x CPU OV

1 x Power-on button(s)

1 x Clear CMOS jumper(s)

1 x 14-1 pin TPM connector

1 x COM port header

1 x High AMP Fan header (4-pin)

1 x T_Sensor Connector

1 x AIO PUMP Header

2 x 3D Mount screw port(s)

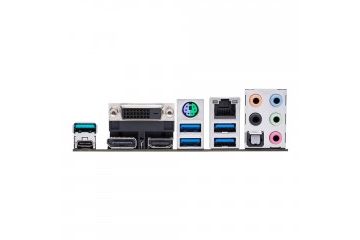

ZUNANJI PRIKLJUČKI:

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

1 x USB 3.1 Tipe-A

1 x USB 3.1 Tipe-C

4 x USB 3.0

1 x Optical S/PDIF out

5 x Audio jack(s)


DODATNO

OC Design - ASUS PRO Clock Technology

- Full BCLK range for extreme overclocking performance

5-Way Optimization by Dual Intelligent Processors 5

- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

ASUS 5X Protection III :

- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM: 8 Phase digital power design

ASUS TPU :

- Auto Tuning

- GPU Boost

ASUS EPU :

- EPU

AURA :

- Aura Lighting Control

- Aura RGB Strip Headers

- Aura Lighting Effects Synchronization with compatible ASUS ROG devices

ASUS Exclusive Značilnosti :

- MemOK!

- AI Suite 3

- Ai Charger

- Turbo LAN

- Crystal Sound 3

- EZ XMP ASUS Exclusive Značilnosti

- PC Cleaner

File Transfer

- Cloud GO!

- File Transfer

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution

- ASUS Fan Xpert 4

ASUS EZ DIY :

- Precision Tweaker 2

- ASUS O.C. Tuner

- ASUS O.C. Profile

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- Multi-language BIOS

CPU Installation Tool

- Three-step simplicity and safety

ASUS Q-Design :

- ASUS Q-Shield

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS Q-Connector

Special Memory O.C. Design

Overclocking Protection :

- ASUS C.P.R.(CPU Parameter Recall)

Turbo APP


Spletna stran proizvajalca: https://www.asus.com/Motherboards/PRIME-Z270-A/overview/
