Osnovne plošče

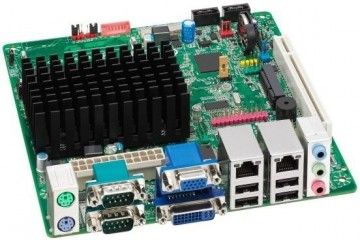

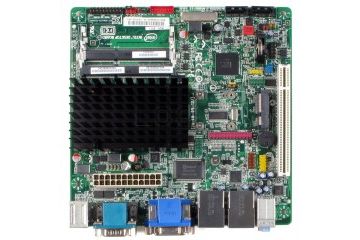

1005 Intel® D2500CCE vključno z Intel Atom D2500

Spletna cena z DDV

€ 100,45   € 97,44 -3,00%
oz. že od € 2,94/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preveri

Ni več v ponudbi

Koda izdelka: BLKD2500CCE


Opis izdelka

#BLKD2500CCE / Sound DVI VGA 2x G-LAN SATA2





Base
  integrated

Processor

Designation Intel ® Atom ™ D2500 (1.86 GHz)
Clock speed 2x 1866 MHz
Level 2 Cache 1024 KB
Instruction sets Execute Disable Bit, SSE2, SSE3, SSSE3
Bus clock 2500 MT / s
Memory controller
Storage standards DDR3-800, DDR3-1066
Memory channels 1
ECC memory is supported No
Registered memory is supported No
Fully Buffered is required No
Processor core Cedar Trail, 32 nm
max. Input 10 Watt
Core voltage 0.91 Volt - 1.21 Volt
Design mFC BGA
Base integrated

Vezni nabor

  Intel ® NM10 Express

Slots

PCI (32-bit) 1
support 33 MHz (5 volts)
Mini PCIe 1

Form Factor
  Mini-ITX

Power Supply
  ATX12V 2.0 (24-pin + 4-pin)

Memory

maximum 4 GB
Tipe of memory SDRAM DDR3
Memory Sockets 2 x DDR3 SO-DIMM
Storage standards DDR3-1066, DDR3-1333, DDR3-1600, Useable memory clock is the memory controller in the CPU-dependent.
Memory channels 1
ECC memory is supported No
Registered memory is supported No
Fully Buffered is required No

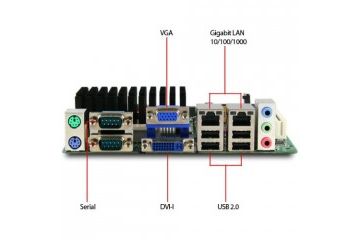

Connections

  2 x serial
  1 x Parvsel
  1 x PS / 2 mouse
  1 x PS / 2 keyboard
  1 x 3-pin fan



SATA controller


Tipe of controller Serial ATA
Internal connectors 2 x Serial ATA
Protocols Serial ATA/300
Max transfer rate 300 MB / s, 3.0 Gb / s
Maximum number of devices 2
Channels 2

USB controller

USB controller
Tipe of controller USB 2.0
External connectors 4 x USB A
Protocols USB 2.0
Max transfer rate 60 MB / s
Maximum number of devices 127
Channels 1

Graphic


Graphics chip
Designation Intel GMA 3600
Clock speed 400 MHz
Pixel pipelines 4
Shader Model 4.1
DirectX version 9.3
OpenGL version 3.0
MPEG2
Playback Yes
Encoding No
Direct connections
  1 x DVI-I Output
  1 x VGA output
Learn more
  H.264 and VC1 hardware decoder, HDCP1.3

Sound

Chip Realtek ALC662
Inputs
  1 x Line In
  1 x Microphone
Outputs
  1 x Line-out
Channels
  analogous to 2
Surround 6-channel sound chip

LAN


Designation Intel ® i82574L
Connections
  2 x RJ-45 (LAN)
Transfer rate
LAN 10/100/1000 Mbit / s
Vezni nabor Intel ® 82574L

Can also be used
  2x USB 2.0, 2x serial, 1x parvsel

Accessories
  CD (driver, manual) 2x SATA cable, ATX panel, stickers (Overview)
