Osnovne plošče

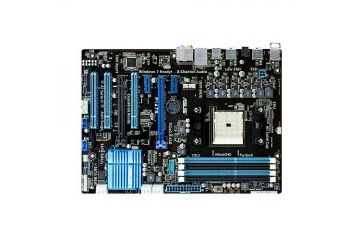

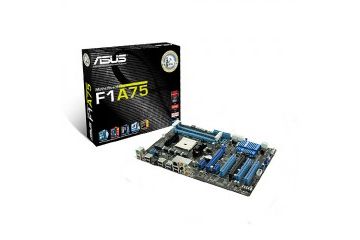

1005 Socket-FM1 ASUS F1A75, ATX

Spletna cena z DDV

€ 99,75   € 99,75
oz. že od € 2,92/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Pokličite

Ni več v ponudbi

Koda izdelka:


Opis izdelka

Šifra izdelka: 90-MIBGM0-G0EAY00Z

Specifications


CPUAMD Socket FM1 A- Series/E2- Series Accelerated Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 2.0 Technology
* The AMD® Turbo Core 2.0 Technology Support depends on the APU types
Vezni naborAMD A75 FCH (Hudson D3)
Memory4 x DIMM, Max. 64GB, DDR3 1866/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
GraphicIntegrated AMD Radeon™ HD 6000 Series Graphics in Llano APU

AMD® Dual Graphics technology support *1
Multi-GPU SupportSupports AMD CrossFireX™ Technology
Expansion Slots1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCIe 2.0 x1
3 x PCI
StorageAMD A75 FCH (Hudson D3) chipset :
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 10, JBOD
LANRealtek® 8111E , 1 x Gigabit LAN Controller(s)
AudioRealtek® ALC 887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel
USB PortsAMD A75 FCH (Hudson D3) chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD A75 FCH (Hudson D3) chipset :
10 x USB 2.0 port(s) (6 at back panel, black, 4 at mid-board)
Overclocking ZnačilnostiOverclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special ZnačilnostiASUS EPU :
- EPU
ASUS Protect 3.0 Technology :
- Anti-Surge Protection
- Low EMI Solution
- ESD
TurboV
ASUS Exclusive Značilnosti :
- MemOK!
- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
100% All High-quality Conductive Polymer Capacitors

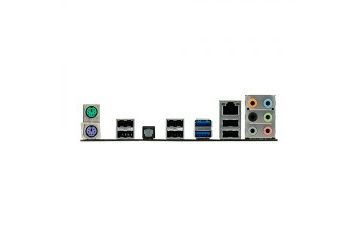

Back I/O Ports1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x Power Fan connector(s) (1 x 3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
AccessoriesUser's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a
Support DiscDrivers
ASUS PC Probe II
ASUS Update
Anti-virus software (OEM version)
Form FactorATX Form Factor
12 inch x 8.8 inch ( 30.5 cm x 22.4 cm )
Note*1-1: Refer to www.amd.com for the Dual Graphics selected GPUs.
*1-2: Refer to www.amd.com for the discrete GPUs that support AMD® Dual Graphics.
