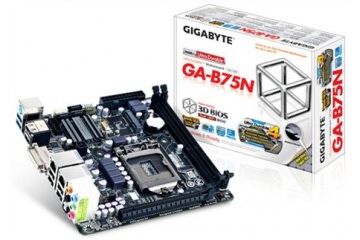

1005 S-1155 GIGABYTE GA-B75N, Mini-ITX

Spletna cena z DDV

€ 84,04   € 84,04
oz. že od € 2,46/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preverite na info@sestavi.si ali preko obrazca za spletno pomoč

Ni več v ponudbi

Koda izdelka:


Opis izdelka

Šifra izdelka: GA-B75N



CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
  2. L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Vezni nabor
  1. Intel® B75 Express Vezni nabor
Memory
  1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is instvsed, the actual memory size displayed will be less than the size of the physical memory instvsed.

  2. Dual channel memory architecture

  3. Support for DDR3 1600/1333/1066/800 MHz memory modules
    * To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.

  4. Support for non-ECC memory modules

  5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor:
  1. 1 x DVI-I port, supporting a maximum resolution of 1920x1200
  2. 2 x HDMI ports, supporting a maximum resolution of 1920x1200
Audio
  1. Realtek ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. 2 x Realtek GbE LAN chips (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
Storage InterfaceVezni nabor:
  1. 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
  2. 3 x SATA 3Gb/s connectors (SATA2 1/2/3) supporting up to 3 SATA 3Gb/s devices
USBVezni nabor:
  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. Up to 6 USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x serial port header
  4. 1 x SATA 6Gb/s connector
  5. 3 x SATA 3Gb/s connectors
  6. 1 x USB 3.0/2.0 header
  7. 1 x USB 2.0/1.1 header
  8. 1 x CPU fan header
  9. 1 x system fan header
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x S/PDIF Out header
  13. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 2 x HDMI ports
  3. 1 x DVI-I port
  4. 2 x USB 3.0/2.0 ports
  5. 4 x USB 2.0/1.1 ports
  6. 2 x RJ-45 ports
  7. 1 x optical S/PDIF Out connector
  8. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU fan speed control
    * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Značilnosti
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress Install
  4. Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  5. Support for Auto Green
  6. Support for ON/OFF Charge
  7. Support for Q-Share
  8. Support for EZ Setup
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel® Rapid Start Technology
  3. Intel® Smart Connect Technology
Operating System
  1. Support for Microsoft® Windows 8/7/XP
Form Factor
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
