Osnovne plošče

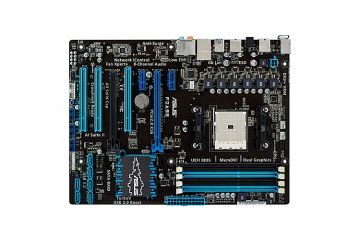

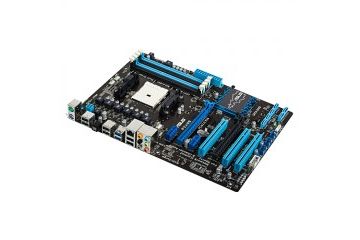

1005 Socket-FM2 ASUS F2A55, ATX

Spletna cena z DDV

€ 71,70   € 71,70
oz. že od € 2,10/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preverite na info@sestavi.si ali preko obrazca za spletno pomoč

Ni več v ponudbi

Koda izdelka:


Opis izdelka

Šifra izdelka: 90-MIBJU0-G0EAY0VZ



Specifications


CPUAMD Socket FM2 Athlon™/A- Series Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 3.0 Technology
Vezni naborAMD A55 FCH (Hudson D2)
Memory4 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
GraphicIntegrated AMD Radeon™ HD 7000 Series Graphics in A-series APU

AMD® Dual Graphics technology support *
Multi-GPU SupportSupports AMD CrossFireX™ Technology
Expansion Slots2 x PCIe 2.0 x16 (black+blue)
2 x PCIe 2.0 x1
3 x PCI
Storage6 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 10, JBOD
LANRealtek® 8111F, 1 x Gigabit LAN Controller(s)
AudioRealtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB PortsAMD A55 FCH (Hudson D2) chipset :
12 x USB 2.0 port(s) (6 at back panel, )
ASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, )
Overclocking ZnačilnostiOverclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special ZnačilnostiASUS Power Design :
- ASUS EPU
ASUS Protect 3.0 Technology :
- Anti-Surge Protection
- Low EMI Solution
ASUS Exclusive Značilnosti :
- MemOK!
- AI Suite II
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

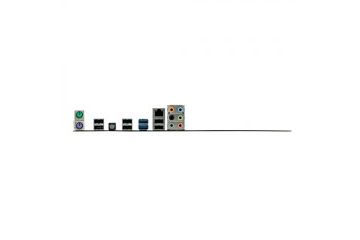

Back I/O Ports1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
6 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
AccessoriesUser's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
BIOS64 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a
Support DiscDrivers, ASUS utilities, ASUS update, Anti-virus software (OEM version)
Form FactorATX Form Factor
12 inch x 8.8 inch ( 30.5 cm x 22.4 cm )
Note* Refer to www.amd.com for the discrete GPUs which support Dual Graphics technology
