Osnovne plošče

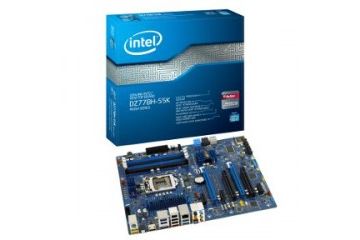

1005 S-1155 INTEL DZ77BH-55K, ATX

Spletna cena z DDV

€ 124,34   € 124,34
oz. že od € 3,64/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preverite na info@sestavi.si ali preko obrazca za spletno pomoč

Ni več v ponudbi

Koda izdelka:


Opis izdelka

Šifra izdelka: BOXDZ77BH55K

Značilnosti and Configurations

Form factor

ATX

AA# (Altered Assembly)

G39008-XXX

BIOS ID string

BHZ7710H.86A with Intel Fast Boot Technology

Processor

At product launch, this Intel® Desktop Board DZ77GA-70K supports:



Intel® Core™ i7 -K processors series and other processors in an LGA1155 socket



View all compatible Intel® processor numbers

Memory

  • Four 240-pin DDR3 SDRAM dual in-line memory module (DIMM) sockets
  • Support for DDR3 1600/1333 /1066 MHz DIMMs
  • Support for up to 32 GB of system memory

Vezni nabor

Graphics

  • Intel® HD Graphics

HDMI* and DisplayPort*

  • Two PCI Express* 3.0 x16 connectors (one x8 electrical)

Supports ATI CrossFireX* and NVIDIA SLI*

Audio

Intel® High Definition Audio1 subsystem in the following configuration:

  • 10-channel (7.1+ 2 independent multi-streaming) audio subsystem with six analog audio outputs and optical S/PDIF out port
  • Supports Dolby* Home Theatre V4

LAN support

  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller

Peripheral interfaces

  • Six SuperSpeed* USB 3.0 ports (4 external/2 header)
  • 10 USB 2.0 ports (four external (two hi-current/fast charging) / six internal)
  • Four Serial ATA 6.0 Gb/s ports
  • Three Serial ATA 3.0 Gb/s ports, one eSATA 3.0 Gb/s
  • Two IEEE 1394a ports/headers (one external/one header)
  • Consumer infrared receiver and emitter

Expansion capabilities

  • Two PCI Express* 3.0 x 16 discrete graphics card connector
  • Three PCI Express 2.0 x 1 connectors
  • Two Conventional PCI bus connectors
