Osnovne plošče

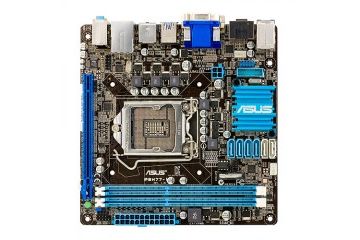

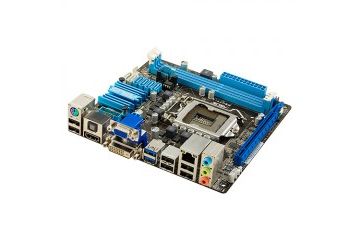

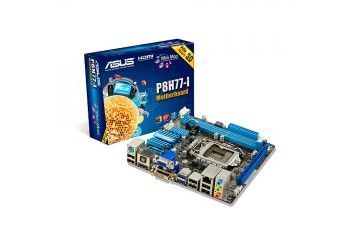

1005 S-1155 ASUS P8H77-I, Mini-ITX

Spletna cena z DDV

€ 91,70   € 91,70
oz. že od € 2,69/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preverite na info@sestavi.si ali preko obrazca za spletno pomoč

Ni več v ponudbi

Koda izdelka:


Opis izdelka

Šifra izdelka: 90-MIBI90-G0EAY0DZ





Specifications


CPUIntel® Socket 1155 for 3rd/2nd Generation Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Vezni naborIntel® H77
Memory2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.
GraphicIntegrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Multi-GPU SupportSupports LucidLogix® Virtu™ MVP Technology *1
Expansion Slots1 x PCIe 3.0/2.0 x16
StorageIntel® H77 chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
LANRealtek® 8111F, 1 x Gigabit LAN Controller(s)
AudioVIA 8-Channel High Definition Audio CODEC
- Supports : Multi-streaming, Front Panel Jack-retasking
USB PortsIntel® H77 chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® H77 chipset :
8 x USB 2.0 port(s) (6 at back panel, black, 2 at mid-board)
Special ZnačilnostiGPU Boost
ASUS Exclusive Značilnosti :
- AI Suite II
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
- ASUS Q-Fan 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2

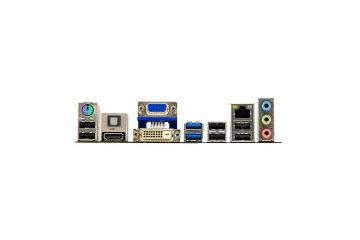

Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
1 x Optical S/PDIF out
3 x Audio jack(s)
Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x Chassis Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
AccessoriesUser's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a
ManageabilityWOL by PME, PXE
Support DiscDrivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
Form FactorMini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note*1: LucidLogix Virtu MVP supports Windows 7 operating systems.
*2: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system.
