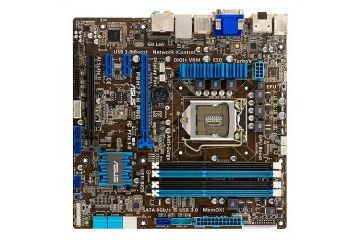

1005 S-1155 ASUS P8H77-M Pro, Micro-ATX

Spletna cena z DDV

€ 98,62   € 98,62
oz. že od € 2,89/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preverite na info@sestavi.si ali preko obrazca za spletno pomoč

Ni več v ponudbi

Koda izdelka:


Opis izdelka

Šifra izdelka: 90-MIBHQ0-G0EAY0DZ





Specifications


CPUIntel® Socket 1155 for 3rd/2nd Generation Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Vezni naborIntel® H77
Memory4 x DIMM, Max. 32GB, DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* The Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
GraphicIntegrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
- Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
Maximum shared memory of 1696 MB
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU SupportSupports AMD Quad-GPU CrossFireX™ Technology
Supports LucidLogix® Virtu™ MVP Technology *1
Expansion Slots1 x PCIe 3.0/2.0 x16 (blue) *2
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x1
StorageIntel® H77 chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3
Marvell® PCIe SATA 6Gb/s controller : *4
1 x eSATA 6Gb/s port(s), red
1 x SATA 6Gb/s port(s), navy blue
LANRealtek® 8111F, 1 x Gigabit LAN Controller(s)
AudioRealtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
USB PortsIntel® H77 chipset : *5
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® H77 chipset :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
Overclocking ZnačilnostiOverclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special ZnačilnostiASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading 4 + 1 + 1 Phase Power Design
- ASUS DIGI+ VRM Utility
TurboV
GPU Boost with switch
ASUS Exclusive Značilnosti :
- MemOK!
- AI Suite II
- Low EMI Solution
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Hladilnik
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
100% All High-quality Conductive Polymer Capacitors

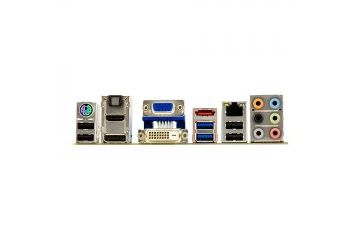

Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x eSATA 6Gb/s
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (4 -pin)
1 x Power Fan connector(s) (3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x parvsel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x EPU switch(es)
1 x GPU Boost switch(es)
1 x Clear CMOS jumper(s)
AccessoriesUser's manual
ASUS Q-Shield
2 x SATA 3Gb/s cable(s)
2 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1)
BIOS64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
ManageabilityWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support DiscDrivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
Form FactoruATX Form Factor
9.6 inch x 9.6 inch ( 24.5 cm x 24.5 cm )
Note*1: LucidLogix® Virtu MVP supports Windows® 7 operating systems.
*2: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors.
*3: Supports on Intel® Core™ processor family with Windows® 7 Operating Systems.
*4: These SATA ports are for data storage only. ATAPI devices are not supported.
*5-1: Supports ASUS USB 3.0 Boost UASP Mode.
*5-2: The USB 3.0 ports only support Windows® 7 or later versions.
